MCAD

CAD software for mechanical design

Streamline the entire mechanical design process with NX CAD. As an integrated toolset, NX CAD supports every aspect of product development—preserving data integrity and design intent.

30-day free trials

Try NX CAD software

Start designing today with a free trial of NX CAD, a leading product design solution. Learn how to develop high-quality products by using the high-performance design capabilities of NX.

These online cloud trials allow you to try any NX software as a service (SaaS) or cloud-connected products. No installation is needed, so you can start designing in minutes.

A digital cloud lighting up in the foreground with a man wearing a suit in the background.

NX CAD mechanical design solutions

Deliver products quickly to market and right the first time. NX MCAD solutions enable you to use virtual models rather than costly physical prototypes.

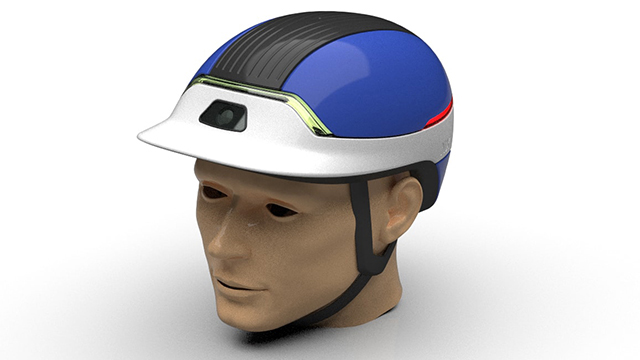

A high quality rendering in NX of a mannequin head wearing a bike helmet that was designed in NX.
all

CAD industrial design and styling

Access flexible, robust computer-aided industrial design and styling software that accelerates your product engineering by providing fast concept designs that can be directly used in modeling.

Lightweighting of automotive lower control arm component design using a lattice structure in NX.
all

CAD product modeling design

Leverage NX to freely use any modeling approach that fits your design challenge and get innovative products to market faster.

Image showing a 3D revolved component that has been sectioned, had 3D PMI Dimensions added and is positioned above a 2D drawing of the same component.
all

Model-based definition (MBD)

Reduce time spent on engineering documentation and drive downstream tools for validation and manufacturing with digital definitions.

Screenshot of an NX MCAD dashboard.
all

Reuse of CAD data

Meet cost-cutting targets and time-to-market deadlines by facilitating knowledge reuse. Our comprehensive knowledge reuse solutions maximize the value of your product knowledge by helping you leverage it again and again.

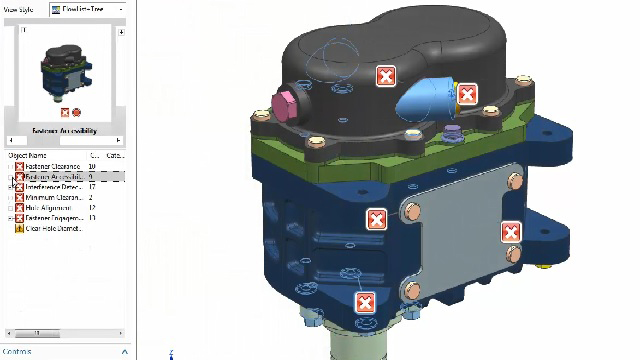

An assembly that has been analyzed for Manufacturing showing failed components with a visual tag with an X in it.
all

Design validation

Use visual product analytics and validation tools that enable you to quickly synthesize information, check designs for compliance to requirements, and make informed decisions.

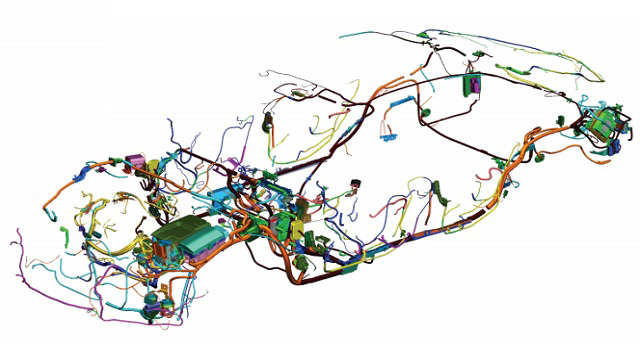

3D Automotive Wire Harness Design in NX.
all

Mechanical routing

Reduce detailed design time, improve product quality and transfer product information seamlessly between the logical design, physical design, analysis, manufacturing and service sectors.

A man working with multiple screens with NX CAD open; the screens show a designed part for additive manufacturing
all

Additive manufacturing

Design, optimize, and build metal and plastic components with additive manufacturing.

A man and a woman using virtual reality headsets to view something in NX CAD
all

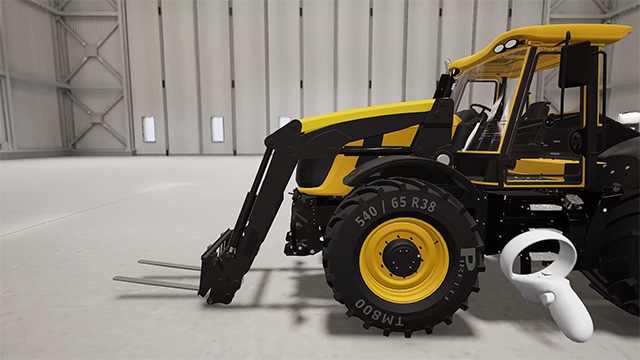

Visualization & Virtual Reality (VR)

View visual mock-ups of your design as you create a digital twin.

NX Product Template Studio windows in NX CAD
all

Modeling technologies and automation

Work more efficiently to bring products to market faster with the NX modeling platform with CAD automation.

white paper

3D product design with additive manufacturing

Explore how to industrialize additive manufacturing through lattice structures, material performance analysis, part validation tools and more for consumer product design.

Diverse group of three people with portable devices sit at a table with coffee. A man is using a laptop to view a quadcopter piece outside of its green, 3D additive manufacturing mold.
